Product description
| Part Number | 466705-5001S |
| Previous versions | 466705-9001S, 466705-0001, 466705-1 |
| OE Number | 1180400, 118-0400, 0R7030 |
| Description | Industrial Engines, Power Units |
| CHRA | 449073-0021 (1488173, 2890372) $981.61 |
| Turbo Model | BTV8503 |
| Displacement | 69000 CC, 16V Cylinders |
| Engine | 3516 DITASCAC GS |
| Generator Set Engine | 3508B; 3512B; 3516B; SR4; 3508B; 3512B; 3516B; PM3508; PM3516 |
| Generator | SR4; SR4B; SR4BHV |
| Fuel | Diesel |
| S/N | 1FZ1-UP, 1HZ1-UP, BPD1-UP; 1HZ1-3472 |
| Angle α (compressor housing) | 322º |
| Angle β (turbine housing) | 282º |
| Bearing Housing | 449072-0001 NEW IN STOCK |
| Turbine Wheel | 449587-0001 NEW IN STOCK |
| Comp. Wheel | 443121-0003 (6I0849) NEW IN STOCK |
| Back plate | 448797-0011 NEW IN STOCK |
| Heat Plate | 407657-0009 |
| Repair Kit | 468267-0007 NEW IN STOCK |
| Turbine Housing (Water Cooled) | 441122-0123 (1068934) |
| Compressor Cover | 443892-0032 (1260892) |
| Turbine Housing AR | 1.08 |
| Gasket (turbine inlet) | 409038-0001 (7M7273) |
| Gasket oil inlet | 210019 |
| Gasket (oil outlet) | 210018 |
| Part Number | 466837-5001S |
| Previous Version | 4668370001, 466837-0001, 466837-1 |
| OE Number | 1182987, 118-2987, 0R6732 |
| Description | Industrial Engines, Power Units Boat (Marine) |
| CHRA | 449530-0005 (449530-5005S, 1182988, 0R6733) |
| Turbo Model | UTV8302 |
| Prefix | 23Z, 3LS, 5XM, 6TJ, 95Y, 96Y, 97Y, 49Y, 65Z, 66Z, 67Z, 25Z, 27Z, 29Z, 3NS, 3RC, 72Z, 73Z, 7KM, YAL, YAS, YBS, ZA, ZBL, 7NJ, 3RC, 4EK, ZBA, CAC, 5PW, 8TW, CAL, CMD, CNF, CSZ, GZR, PTF, ZAB |
| Engine | 3516, 3512A Low Speed Industrial |
| Displacement | 16V, 69000 ccm |
| Fuel | Diesel |
| Generator Set Engine | 3508, 3508B, 3512, 3516, 3516B, SR4, 3508 |
| Generator | SR4, SR4B |
| Industrial Engine | SR4, 3508, 3512, 3516, 3508 |
| S/N | 1JZ1-UP, 23Z6682-UP, 6TJ14-99999, 27Z776-791, 65Z602-886, 95Y998-1064, 24Z01317-UP, 68Z00694-01092, 49Y00486-00925, 27Z00650-00791, 6TJ00001-UP, 23Z03489-UP, 67Z00772-UP, 5XM00001-00031, 7KM00001-UP, 3LS00001-UP, 3NS00001-UP, 5PW00001-UP, 25Z02189-UP, 95Y01065-UP, 65Z00887-UP, 27Z00792-UP, CNF00001-UP, ZAB00001-UP |
| Angle α (compressor housing) | 312º |
| Angle β (turbine housing) | 292º |
| Bearing Housing | 449072-0001 (Oil Cooled) |
| Turbine Wheel | 449587-0001 (Ind. 97.1 mm, Exd. 111.45 mm, Trm 47, 11 Blades) |
| Comp. Wheel | 443121-0003 (449587-0001)(6I0849)(Ind. 80.6 mm, Exd. 117.6 mm, Trm 8, 7+7 Blades) |
| Back plate | 442732-0005 |
| Heat Plate | 407657-0009 (409794-0002)(1N3751, 9Y1936) |
| Repair Kit | 468267-0010 (1101085750) |
| Turbine Housing | 441122-0124 (1193687) |
| Compressor Cover | 443892-0015 (6I0850) |
| Turbine Housing AR | 1.23 |
| Gasket (turbine inlet) | 409038-0001 (132040, 7M7273)132040 (9749, 1S4295, 202873, 205396, 3500683, 210017-0000, 409038-0000, 52231083002)(1900000003) |
| Gasket oil inlet | 129119 (210019, 201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900, 129120)(417378 Replaced by 420641)(1900000035) |
| Gasket (oil outlet) | 210018 (129120, 210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025 |
Application
TURBOCHARGER FOR Caterpillar Various Turbo With 3516 DITASCAC GS Engine

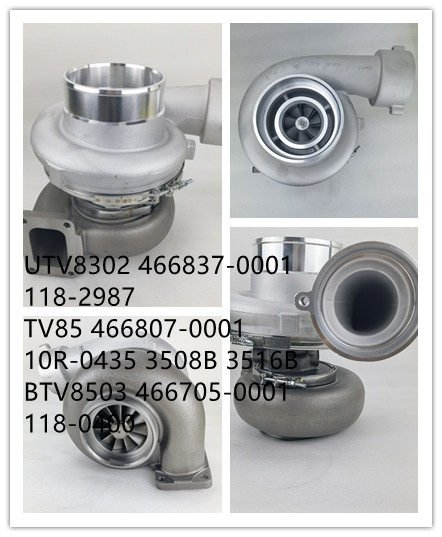

Product Show
